The above graph compares the characteristics of USB transfer modes. Data Accuracy Focus represents the importance placed on data accuracy, while Timeliness Focus indicates the prioritization of time sensitivity.
Isochronous Mode has a high Timeliness Focus score, making it suitable for time-sensitive applications (e.g., music streaming, video calls), but it has a low Data Accuracy Focus score.
On the other hand, Bulk Mode emphasizes Data Accuracy but exhibits low time sensitivity.
Isochronous Mode is one of the USB (Universal Serial Bus) data transfer methods, designed to handle time-sensitive data streams. This mode is primarily used in applications that require continuous data flows, such as real-time audio and video. Unlike other USB transfer modes, Isochronous Mode prioritizes the timeliness of data transfer above all else, allowing for some degree of data loss. Due to this characteristic, it plays a crucial role in time-sensitive applications like voice calls, music streaming, and video streaming.

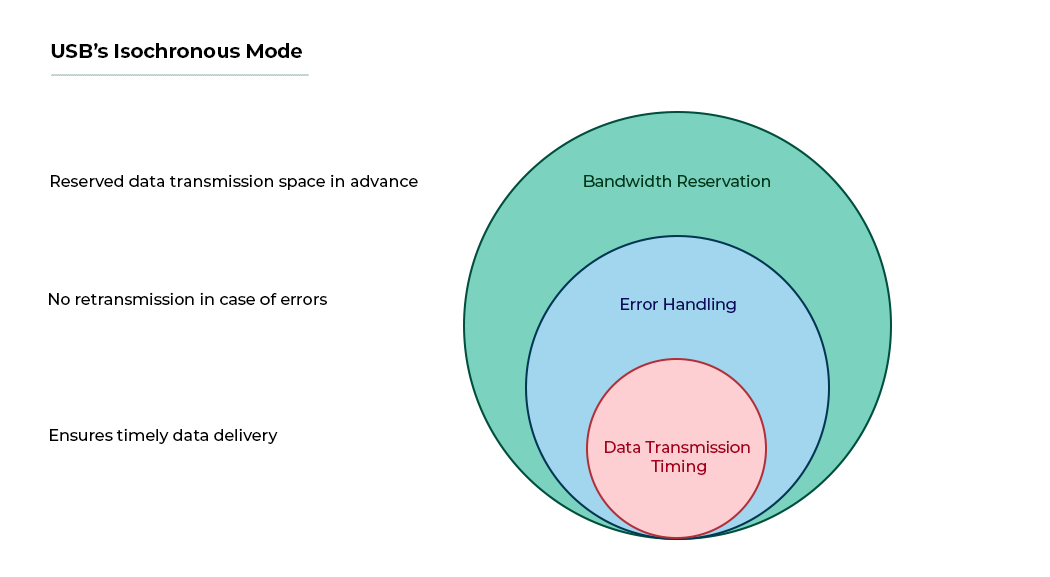

Key Concepts of Isochronous Mode
Importance of Timing
The most critical factor in Isochronous Mode is the timing of data transmission. Each data packet is sent based on a reserved time slot within the USB frame. This ensures that the data arrives within the specified time frame, and delays in timing are not tolerated.
Error Handling Characteristics
Unlike other USB transfer modes (e.g., Bulk, Control, Interrupt), Isochronous Mode does not retransmit data in the event of errors. Even if data is lost or corrupted during transmission, it is not resent because retransmission could interfere with real-time performance. Therefore, this mode prioritizes adherence to timing over data accuracy.
Bandwidth Reservation
USB reserves a certain amount of bandwidth for devices using Isochronous Mode. This gives Isochronous transfers priority over other data transfer methods, helping the host manage USB bus usage time. For example, high-resolution audio streaming devices require the transmission of large amounts of data and need a fixed bandwidth per frame.

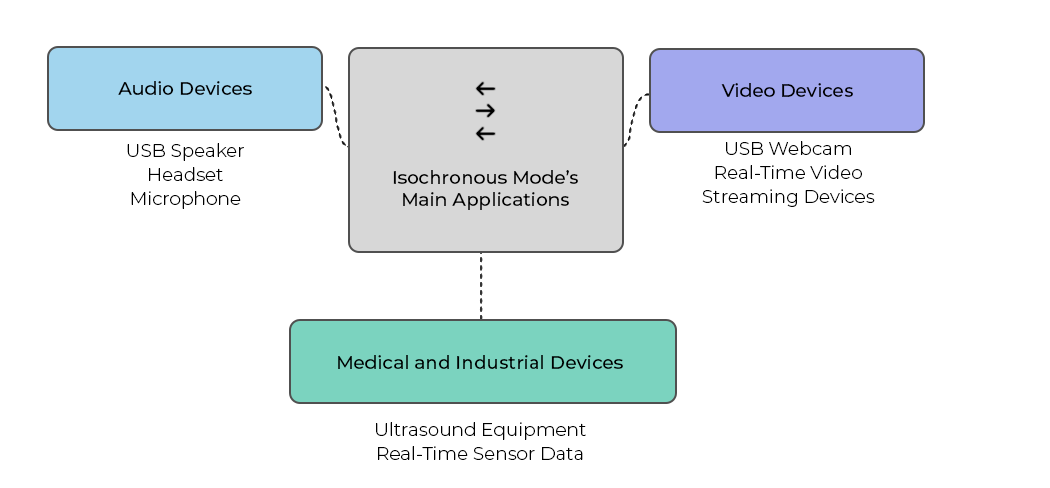

Main Applications of Isochronous Mode
Audio Devices
Devices like USB speakers, headsets, and microphones use Isochronous Mode.
Since audio data must be streamed continuously over time, timeliness is prioritized over packet loss.
Video Devices
Devices such as USB webcams and real-time video streaming devices rely on Isochronous Mode.
It is essential to transmit video data on time without delays between frames.
Medical and Industrial Equipment
Applications like ultrasound machines and real-time sensor data transmission require consistent data transfer speeds.

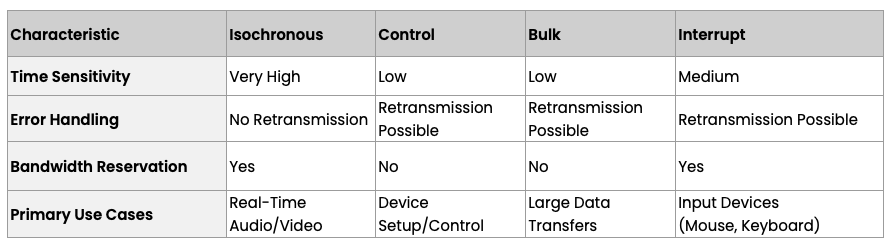

Differences Between Isochronous Mode and Other USB Transfer Modes
Isochronous Mode is one of the four USB transfer modes (Control, Bulk, Interrupt, Isochronous), each with distinct purposes and characteristics. When compared to other modes, Isochronous Mode differs in the following ways:
Summary of Isochronous Mode Characteristics
- Designed for real-time data streaming.
- Reduces delay by omitting error recovery.
- Data packets are transmitted within reserved bandwidth based on designated time slots.
- Suitable for time-sensitive applications such as audio and video streaming.
Isochronous Mode is one of the core technologies of USB data transfer, playing a critical role in real-time data processing. Its emphasis on timeliness, while allowing for some data loss, makes it widely used in audio and video streaming applications. This provides a foundation for USB to go beyond simple data transfer and integrate seamlessly with real-time multimedia devices.
